ARES

Our ARèS range is composed of stations with parabolas from 40cm to 3,10m covering the L, S, C, L+S Ku bands using the SCM (Single channel monopulse) tracking technology or mechanical scanning.

The control is done through an RJ45 link with a simple PC.

Many options are available including an inertial unit, Dual GPS, embeded tracking receiver in S and C band.

 ReferenceDish sizeFrequencyGainPolarisationDatasheet

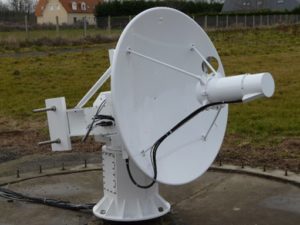

NE7611-A-01.20m2.2 – 2.4GHz
Other bands available
24 dBiLHCP / RHCP

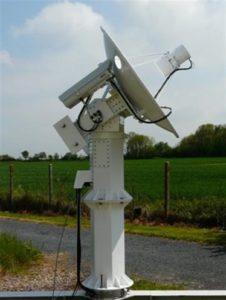

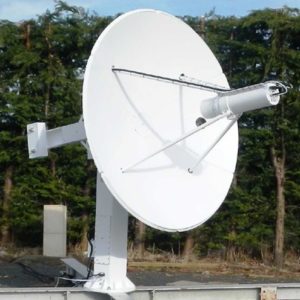

NE7612-J-01.50m2.2 – 2.4GHz
Other bands available
28 dBiLHCP / RHCP

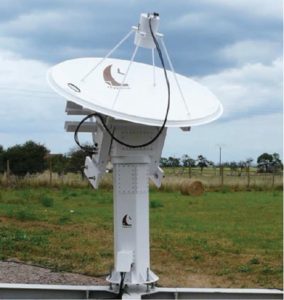

NE7612-G-01.80m2.2 – 2.4GHz
Other bands available
29.5 dBiLHCP / RHCP

NE7612-K-02.40m2.2 - 2.4GHz
Other bands available
31 / 37.5 dBiLHCP / RHCP
